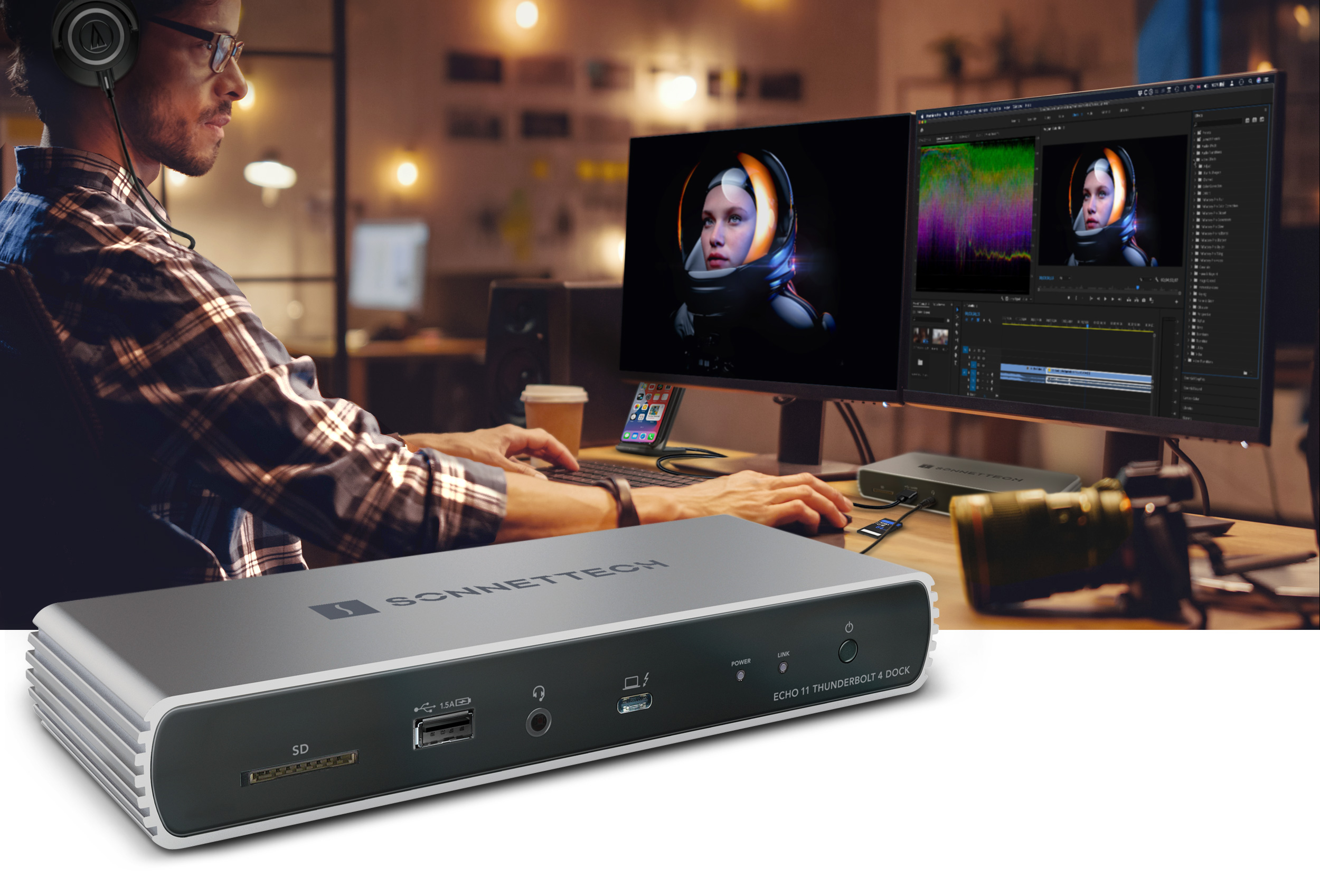

Sonnet Echo 11 Thunderbolt 4 Dock review

The Sonnet Echo 11 Thunderbolt 4 Dock suits a supported desk that needs three downstream Thunderbolt connections, three fast USB-A connections, an SD reader and Gigabit Ethernet, with up to 90 W of laptop charging. Its front USB-A charging port is a separate USB 2.0 connection. Choose it for that actual mixture; four physical USB-A sockets do not mean four 10 Gbps storage connections.

Put storage on the three faster USB-A ports

The rear USB-A sockets are specified at up to 10 Gbps. The front USB-A socket supports charging and data, but its data ceiling is 480 Mbps. A mouse, keyboard or charging phone may suit the front connection, while a compatible faster drive belongs on one of the rear ports. The charging symbol does not change the front socket's data standard.

Four Thunderbolt 4 sockets are present in total. The front Computer/Charging port connects to the host, leaving three downstream Type-C ports for appropriate peripherals or displays. Those ports can also accept supported ordinary USB devices, but their Thunderbolt transport rating is not an ordinary USB 40 Gbps specification, nor proof of USB Gen 2x2 at 20 Gbps.

This layout can suit a desk with several Thunderbolt devices or separate expansion chains. It does not contain native HDMI or DisplayPort sockets. A compatible Type-C or Thunderbolt monitor can use a downstream port directly, while an HDMI or DisplayPort monitor needs the appropriate separate adapter.

Allocate the display connections and check the exact host

Two directly connected Type-C displays occupy two of the three downstream ports. One remains available for another directly connected device. An SSD cannot be promised the same physical socket already allocated to a display, so count the complete simultaneous arrangement before deciding that three downstream ports are enough.

Sonnet's published Thunderbolt 4 matrix documents dual 4K 60 Hz on the appropriate named Mac and Windows hosts. The current product page separately distinguishes base M1 and M2 single-screen limits, compatible base M3 closed-lid arrangements, and the named two-display families. Newer host names in a compatibility list are not permission to ignore the display-mode notes.

The current technical page names macOS 15 or newer and Windows 11 25H2 or newer. Older versions of the quick-start guide describe a broader historical OS list and certain Thunderbolt 3 Windows computers. If that older arrangement is the reason for buying the dock, confirm it against the current documentation rather than treating the older list as an unconditional current promise.

USB4 also needs care. The guide says downstream ports inherit the host's USB4 functionality, including possible differences in display count, bandwidth and PCIe tunneling. Use the actual host and required screen count in the setup finder. A generic USB4 connection should not silently inherit the richest Thunderbolt display plan.

Use the built-in network and card reader for the right jobs

The built-in Ethernet connection supports a Gigabit link. It is useful when that matches the network, but it is not a 2.5 or 5 Gb interface. Connecting it to a faster switch does not raise the dock's own link ceiling. USB storage, networking and display traffic still depend on the complete host path; these are advertised interface capabilities, not our simultaneous transfer measurements.

The front UHS-II SD reader supports the documented SD card formats. There is no separate microSD slot. A microSD adapter used in an SD reader does not create two independent card slots, so this is not a simultaneous native SD-plus-microSD reader arrangement. Account for a separate reader if that is a daily requirement.

The combination audio jack handles an appropriate headset or headphones. The guide describes selecting the dock's audio device in the operating system where necessary. That setup step is different from assuming every attached audio peripheral has the same software or compatibility requirements.

Understand the supply and the whole-dock switch

The package includes a universal 135 W power supply, power cord and detachable 0.8 m Thunderbolt cable. The laptop allowance is up to 90 W, rather than the supply's full rating. Sonnet notes that charging varies with overall power use, and a demanding laptop whose normal charger exceeds the dock's allowance may still need its own power source.

The power switch turns the complete dock on or off. When off, the guide says power is removed from all ports and connected devices stop charging. It does not provide individual switches for disconnecting selected USB peripherals. Keep that whole-dock behavior in mind if some devices normally remain attached for charging.

Shortlist Echo 11 when the three downstream Thunderbolt ports and this exact USB-A, network and card arrangement fit a confirmed host. For a different mix with many dedicated data ports, simultaneous card readers and another network ceiling, compare the CalDigit TS4. Compare the occupied connections and power arrangement, rather than the total number of interfaces in either product name.

Sources: Sonnet Echo 11 exact specifications; official Echo 11 quick-start guide; Thunderbolt 4 display matrix. This assessment does not report hands-on speed, charging or durability tests.
