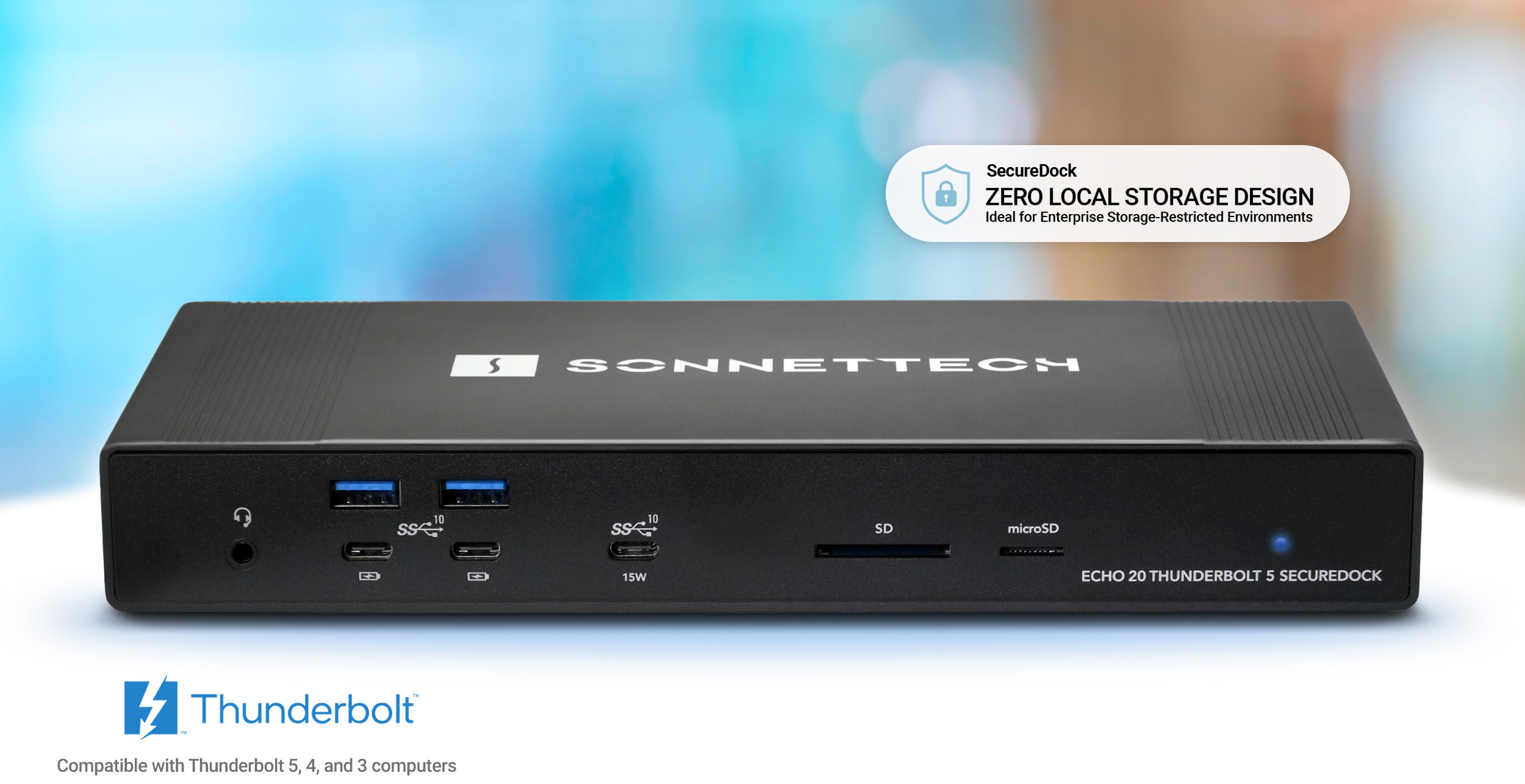

Sonnet Echo 20 Thunderbolt 5 SecureDock review

The Sonnet Echo 20 Thunderbolt 5 SecureDock makes sense for a supported desk that needs 10 Gb Ethernet, substantial USB expansion and up to 140 W of laptop charging while avoiding an internal storage slot. That absence is its deciding feature. It keeps the major connection options of Sonnet's Echo 21 but removes the place for an onboard NVMe drive. It still needs a carefully matched computer, and its HDMI and DisplayPort sockets cannot operate together.

What the storage-free design actually changes

The ECHO-DK20-T5 is a different dock from the similarly named Echo 20 Thunderbolt 4 SuperDock. The older Thunderbolt 4 model includes an optional internal SSD slot and 2.5 Gb Ethernet. This Thunderbolt 5 SecureDock has no internal storage slot and upgrades the network connection to 10 GbE. The names alone are therefore insufficient for ordering or comparing their specifications.

Sonnet positions the SecureDock for environments that prohibit onboard storage. It can be useful for a shared or managed workstation where a dock should not become another place to keep files. That does not mean the dock blocks external USB drives, encrypts connected storage or enforces an organisation's device policy. Its USB and Thunderbolt ports are intended to connect peripherals, including storage. Confirm the actual policy and driver permissions with the administrator rather than treating the product name as a security certification.

If local storage inside the dock would be useful, the Echo 21 Thunderbolt 5 SuperDock is the directly relevant alternative. There is little reason to choose the storage-free model while already planning to add an enclosure solely to recreate a feature the other model provides.

A clear distinction between USB data and Thunderbolt

The front and rear panels together provide four USB-A and five dedicated USB-C ports, all advertised at 10 Gbps USB 3.2 Gen 2. One front Type-C port supplies up to 15 W and the other dedicated Type-C ports up to 7.5 W each. These sockets can carry data while charging a compatible device, which is useful when a phone or bus-powered drive also needs a convenient powered connection.

Two further downstream Thunderbolt ports accept supported Thunderbolt, USB4 and USB peripherals, as well as suitable displays. Each provides up to 15 W. The computer uses its own separate host port. That gives seven downstream Type-C-shaped data connections before monitors are attached, but five have a stated ordinary USB 10 Gbps rate and two have a separately specified Thunderbolt role. A TB5 transport headline does not prove USB 3.2 Gen 2x2 for a 20 Gbps USB drive.

The network connection matters most when the rest of the local network can use it. Sonnet specifies 10 GbE through Cat 6 up to 55 metres or Cat 6A up to 100 metres, with slower multi-gigabit and Gigabit links supported too. A 1 Gb switch or a slow storage server does not become a 10 Gb workflow merely because this dock has the faster socket. The Marvell controller's PCIe route also needs a suitable host; generic USB4 without confirmed PCIe tunneling is insufficient evidence. Windows users must install the required Ethernet driver.

One native video output plus the actual computer limit

HDMI and full-size DisplayPort are mutually exclusive native outputs. Use one of them, then add a suitable monitor through a downstream Thunderbolt port if the computer supports another independent screen. Using two Type-C displays consumes both downstream Thunderbolt sockets, leaving the five dedicated USB-C data sockets free. Using one native display and one Type-C display leaves an additional downstream Thunderbolt connection available.

Sonnet specifies the HDMI maximum differently by OS: up to 8K 60 Hz on Windows and up to 4K 60 Hz on macOS. DisplayPort is listed up to 4K 144 Hz. Neither number independently establishes how many displays the computer can run at once.

Base M1 and M2 Macs support one display through the dock. Compatible base M3 MacBooks can use two with the lid closed. M5 Pro and Max have specifically documented three-screen support, and M5 Max and Ultra have a four-screen configuration requiring a compatible Thunderbolt display chain. Confirm the monitor models, cables and chosen timing for that chain. The current M5 Ultra screen-count claim does not supply an exact joint refresh rate in the reviewed older matrix. M4 Max three-screen guidance also conflicts with Apple's current per-port limit, so the established two-screen arrangement is the safer documented starting point.

Plan the power brick and managed setup

The supplied universal 240 W adapter powers the dock, with up to 140 W available for a suitable laptop. It is not 240 W of laptop charging. The US package also includes the regional power cord, a detachable 0.8 m TB5 cable and a ThunderLok-A retainer. A laptop designed for a higher-powered charger may discharge slowly under heavy work even while connected; attached bus-powered devices also affect the available power. Desktop computers retain their own supply.

There is no manual power switch: the dock follows the connected computer. RCA line outputs, a separate microphone connection and a headset jack support several audio arrangements. Both SD and microSD slots are present, but the reviewed material does not establish simultaneous independent card access. Do not make that a required part of a media-ingest workflow without confirmation.

Choose this dock when the storage-free configuration, 10 GbE and nine dedicated faster USB ports all solve real requirements. A smaller powered hub may be enough for a keyboard and one drive. Use the DockAndPort finder to check the supported OS and host, screen arrangement, remaining Type-C data ports and charger requirements together.
